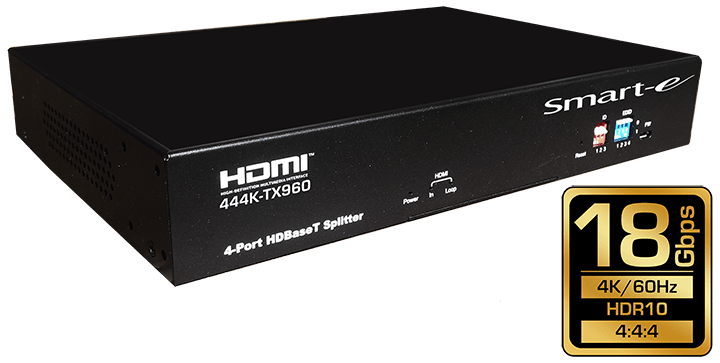

444K-TX960 Smart-e 100m 18Gbps 4K, 2K 4-port HDBaseT HDMI Splitter RS232, Infra-red and POC

Description The 444K-TX960 is a self contained HDBaseT splitter capable of transmitting HDMI signals up to 4K UHD resolutions over 100m of Cat 6 cable. A single HDMI input can be connected to the rear of the unit where it gets split internally and then fed to 4 separate HDBaseT outputs. Each receiver (444K-RX875) decodes the HDBaseT protocol back to HDMI and RS232. Power is provided from the transmitter through the same Cat cable so there is no need for bulky PSUs at the display end. A secure lockable DC connector on the splitter provides a reliable power connection. Each HDBaseT connection also allows for RS232 signals to be received back from the receiver enabling remote control of the source device. Fully HDCP 2.2 compliant this 444K-TX960 compact unit is ideal for digital signage use in Education, Entertainment and Retail Market. The Smart-e 444K-TX960 features: Ultra HD 2K and 4K, 1080p resolutions. DCP 2.2 compliant, HDMI V1.4, supports 1920×1200 @ 60 Hz, 1– 4 HDBaseT splitter and 100m Cat6 extension—HDBaseT. 4K@60Hz colour space 4:4:4 Looping HDMi input FeaturesSpecificationsDiagramFeatures 444K-TX960 Features: Ultra HD 2K and 4K, 1080p resolutions HDCP 2.2 compliant, HDMI V1.4 Supports 1920×1200 @ 60 Hz 1– 4 HDBaseT splitter 100m Cat6 extension—HDBaseT 4K@60Hz colour space 4:4:4 Looping HDMI input RS232 pass-through Dolby TrueHD, DTS-HD Master Audio Total 18 Gbits/s data rate Remote powers the receivers (POC) Lockable DC connector EDID management IR passthrough Specifications 444K-TX960 Specifications: Diagram
