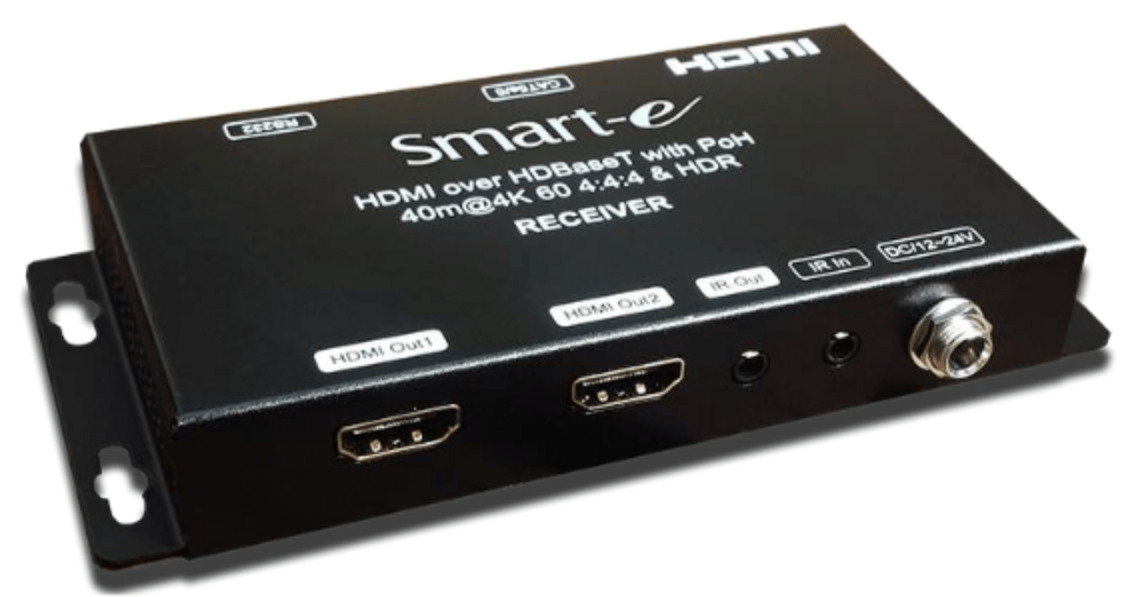

444K-RX875 Smart-e 100m 18Gbps 4K, 2K HDBaseT HDMI RS232, Infra-red and POC Receiver

Description The 444K-RX875 is a flexible and cost effective receiver solution to extending HDMI, bi-directional IR, full duplex RS232 together and POC (remote power over cable). The unit is compact and comes with the IR accessories. By incorporating the full HDBaseT technology 4K UHD HDMI signals can be transmitted up to 100m away. The 444K-RX875 is a HDBaseT receiver capable of transmitting UHD HDMI signals up to 4K UHD resolutions. Implementing the complete 4-Play of the HDBaseT specification the receiver extender also provides the pass through of wide band bi-directional InfraRed signals and full duplex RS232 up to 115Kbaud. Whilst POC power (12-24V) can be sent by either the TX, Matrix or Splitter through the Cat 6 cable to provide power to the remote end. All that is required is a single Cat6/6A STP cable connection to provide all these features. Dual mirrored HDMI outputs provide a convenient solution to back to back displays commonly found in Digital Signage applications. The 444K-RX875 can connect to any other product in the4Konnect range as an extender or into or out of a matrix. FeaturesDiagramFeatures 444K-TX874 Features: HDBaseT technology HDMI 2.0 4K@60Hz 4:4:4, 18G, HDR10, Dolby Vision HDCP 2.2/1.3 compliant Dual mirrored outputs Full duplex RS232 pass through Bi-directional IR pass through POC (remote powering receivers) 100m CAT 6 HDMI resolutions 4K, 2K &1080p CEC compliant Integral mounting brackets Secure DC connection Compact housing Diagram
