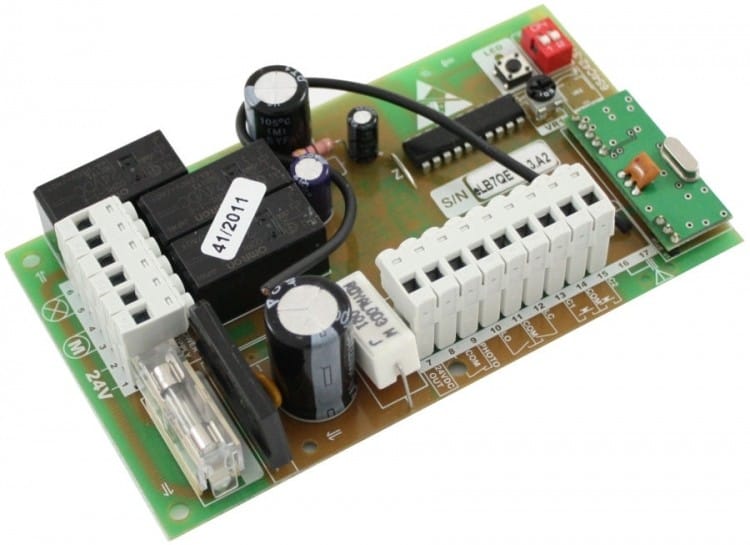

eLB7H controller for sliding garage doors 24V, replacement for ES1 EL1Q

Description eLB7H controller for sliding garage doors 24V, replacement for ES1 EL1Q The eLB7 controller is designed for gate and garage operators using 24V DC motors with a power output of up to 140W. It is ideal for continuous operation. It can be used in residential parking lots, private properties, and businesses. It features numerous security features and a built-in 433.92MHz radio receiver. The controller is available in three standard versions: eLB7E operating in High Security KeeLoq® mode and working with Elbram or eLdrim transmitters The eLB7H works with almost all remote controls compatible with the KeeLoq® coding system eLB7E(H)L control unit for first generation OPTIMUM 600, 800, 1100 machines Basic features of eLB7 Soft start and stop, which increases the life of the gate Built-in radio receiver Control via transmitters operating at 433.92MHz with KeeLoq® dynamically rolling code Remote programming of remote controls Bell button control Housing estate function Gate function Infrared barrier Auto-close function Automatic closing of the gate earlier after passing the infrared barrier Adjustment of static and dynamic overload force Automatic overload release Light signaling or switching on with delayed switching off of the lighting Simple installation and programming procedure Technical data:   eLB7E | eLB7H Power supply: 24V ac/dc Operating temperature range: -20ºC / 70ºC Fuse type: 6.3 A dimensions (5×20) Motor power: max 140W External dimensions (width x depth x height): 84.8mm x 154.4mm x 42.8mm without cable Housing: splash-proof plastic housing IP40 Weight: 130g | 130g Output parameters:     Relay outputs (type, quantity, max. load): DC motor, one, 5.8A/24Vdc (max. power 140W) Lamp relay output (type, quantity, max. load): monostable, one, 1A/24Vac (max. power 25W) Radio parameters:   Radio module: integrated, superheterodyne, ensuring high reliability, repeatability and immunity to radio interference Transmission standard: KeeLoq® Range: up to 200m (when using eLdrim transmitters) Modulation type / frequency: OOK / 433.92MHz Antenna input impedance: 50 Ω Antenna: internal antenna Remote control memory: 34 pcs | 48 pcs. Functionality:     Auto-close time: 5s – 10min Maximum controller operation time: 120s Maximum lamp lighting time: 25 minutes User interface: simple device installation, learning and configuration procedure, based on one LED and one button Transmitter configuration: ability to assign any button to a channel Possibility to erase entire memory: yes Possibility to delete a single remote control: no Possibility of entering the remote control without having to access the receiver buttons: no Notes: eLB7 is a replacement for eL1Q, eL7Q, optimum controllers Additional accessories     NOLOGO ZOOM Z2E photocells SNOD-LED warning lamp with LED interrupter 12/24V Remote control 2k433  Remote control 4A433  4E433 or other 433.92 MHz remote control with Keeloq coding system Files to download: eLB7_(E,_H)_-_User_Manual_Irev1.4.pdf
