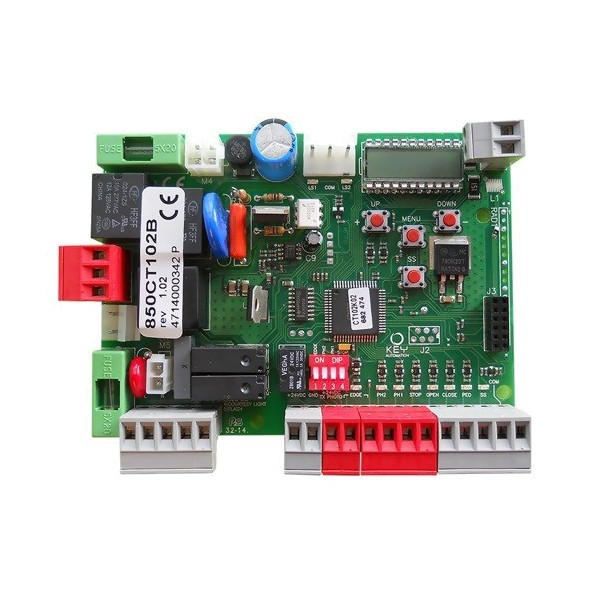

KEY CT102B Control unit for sliding and garage gates with output for one 230V actuator

Description KEY CT102B Control unit for sliding and garage gates with output for one 230V actuator Key CT102B control unit for controlling 1 230 Vac motor, for sliding gates, garage doors, 230 Vac, with electric clutch, slowdowns on opening and closing, adapted for connecting a radio receiver. CHARACTERISTICS : Same programming logic for all CT102, CT202, CT102 24, CT202 24 control panels, with reversal of direction during programming Amperometric sensitivity with reversal of direction of motion Standard or programmable slowdown on opening and closing Programmable automatic closing time after the gate Separate OPEN-CLOSE and PP entrances – wicket entrance 8.2K ​​ohm NC edge strip – photo1 and photo2 Safety device input Walk-around light output Output for signal lamp Display New RX4 4-channel plug-in radio receiver TECHNICAL PARAMETERS: Power supply: 230 Vac/50 Hz Accessory power supply: 24 Vdc Maximum motor power: 700 W Maximum operating time: adjustable Maximum pause time: 0-900 sec Amperometric sensitivity: Yes Dimensions: 120 x 90 x 30 mm Operating temperature: -20°C to 55°C Files to download: 580isct102b_rev.09.pdf
