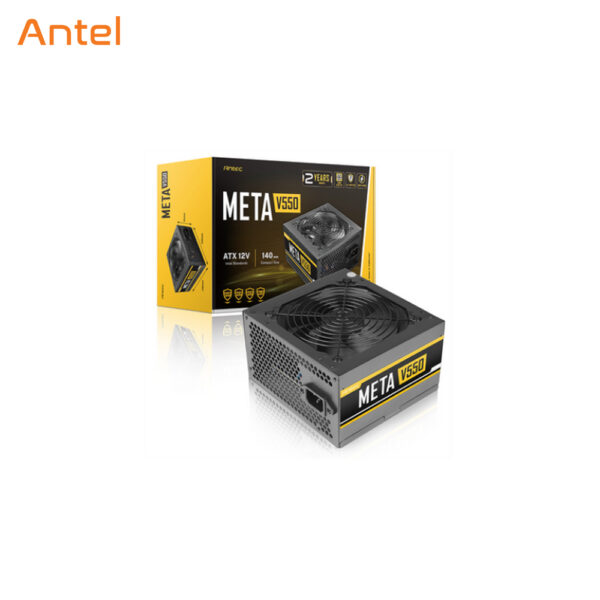

Antec META V550 550W Power Supply

Specification Key Features Continuous Power 550 Watt Fan Size 120 mm Input Voltage 100VAC – 240VAC Frequency Range 47-63Hz Current 4A Output Total Power 550W AC Input 230VAC 4A 47-63Hz DC Output 3.3V, 5V, 12V, -12V, 5Vsb Connector Main Power 24-pin M/B Connectors x1 CPU 8(4 4)pin CPU Connectors x1 PCI-E 8(6 2)pin PCI-E Connectors x2 SATA SATA Connectors x5 Molex Molex Connectors x2 Floppy FDD Connectors x1 Warranty Information Manufacturing Warranty 2 Years Description Antec META V550 550W Power Supply The Antec META V550 is a 550-watt power supply unit that comes with a 24-pin connector (520mm in length), an 8-pin connector for EPS12V (4 4-pin) (550mm in length), an 8-pin connector for PCI-E (6 2-pin) (550mm in length), two 6-pin connectors for SATA (400mm in length each), two 6-pin connectors for SATA (400mm in length each) and one FDD connector. The PSU comes with a Thermal Manager and a 120mm silent fan. It is an advanced low-voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature. The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation. It has an AC input voltage of 230VAC, with a frequency range of 47-63Hz and an input current of 5A. The DC output consists of 3.3V, 5V, 12V, -12V, and 5Vsb with maximum current ratings of 18A, 16A, 42A, 0.3A, and 2.5A respectively. The total combined power of the output is 110W, 300W, 3.6W, and 12.5W. The total wattage of the power supply is 550W.
