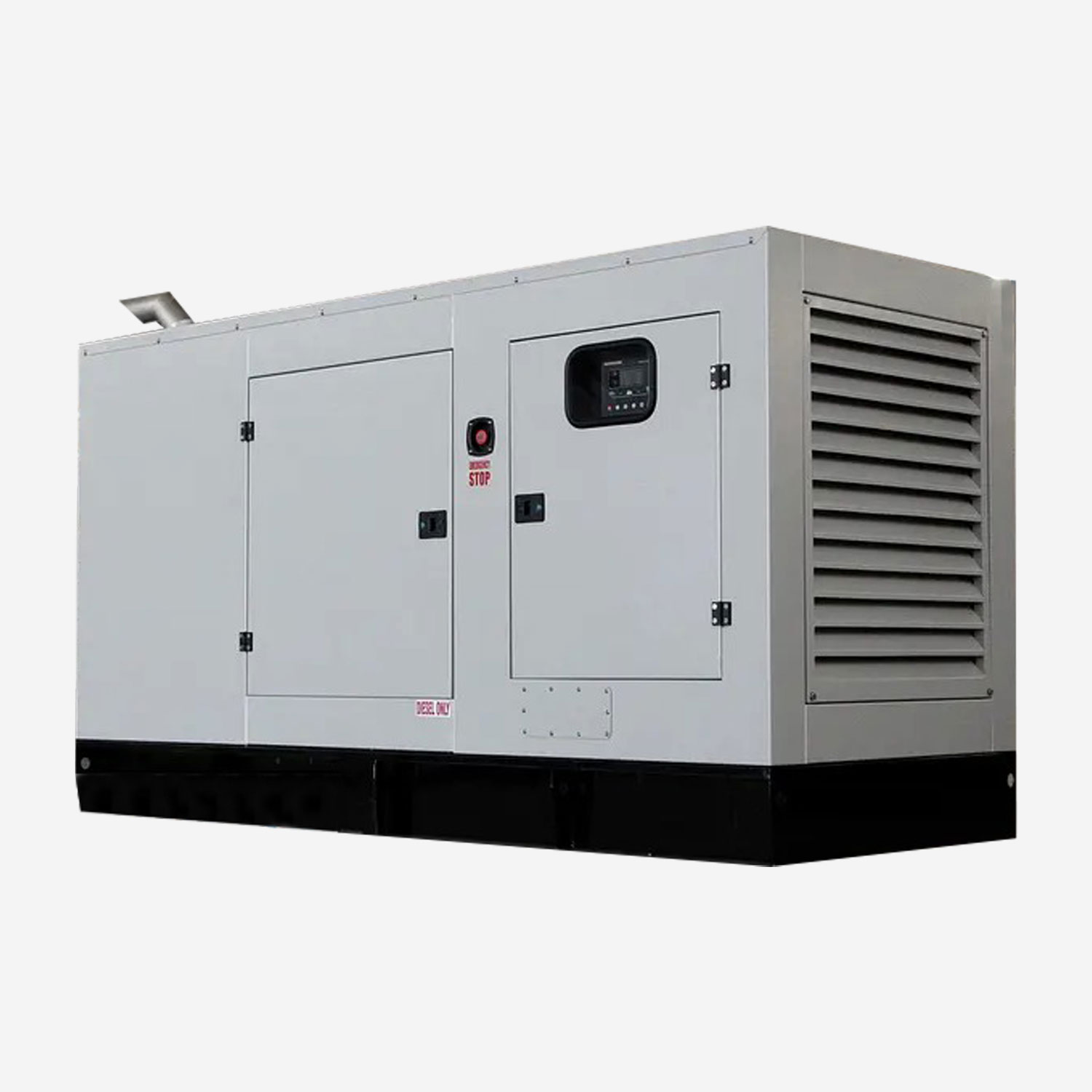

32kVA 3-Phase BAUDOUIN Silent Diesel Generator (GKB-35)

Description Performance Standby power (LTP) 35 kVA Prime power (PRP) 32 kVA Continuous power (COP) 24 kVA Power factor 0.8 φ Frequency 50 Hz Voltage 400 V   Engine Data Engine Brand Baudouin Engine model 4,06G35/5 Engine Type Four-cylinder Standby Power 28 kW Prime Power 25 kW Continuous Power 19 kW Air intake type Turbo Charged Cooling mode Water Cooling Governor mode Electronic Bore x Stroke 89mm x 92mm Compression ratio 17.5:01 Rated Speed 1500 RPM Displacement 2.3l Starter Motor 24V DC Description Diesel Generator   Alternator Data Alternator Brand StromerPower Alternator Model Brushless, Three Phase, Four Wire Standby Current 51 Amps Per Phase Prime Current 46 Amps Per Phase Continuous Current 35 Amps Per Phase Pole Number 4 Phase Number Three Phase AVR Type SX460 Excitation Mode Self Excitation   Canopy Data Canopy Type Silent Canopy Material Mild Steel Canopy Colour White Base Material Mild Steel Base Colour Black Other Canopy Options N/A   Controller Data Controller Brand Smartgen Controller Model HGM420N Controller Display LCD Auto Changeover Scheduling N/A Auto Shutdown Protection Yes Remote Monitoring On Request (Optional Extra) Remote Control On Request (Optional Extra)   Other Data Changeover Switch Manual or Automatic Noise Level (dBA @ 7m) Not Measured (Est. 72db) Fuel Type Diesel Fuel Tank Capacity 540l Fuel Consumption @ 50% load 4l/h Fuel Consumption @ 75% load 5.7l/h Fuel Consumption @ 100% load 7.6l/h Oil Type 15W40 Oil Capacity 9.5l Limited Warranty 12 Months or 1,000 Hours. Whichever comes first.   Dimensions & Weight (Dry) Length 2200 mm Width 920 mm Height 1100 mm Weight 820 kgs   Standard Features Pre-Delivery Testing Filled with oil and coolant, tested under full load. YES Pre-Delivery Inspection (PDI) Full inspection of the generator YES User Manuals Digital (Online)   Optional Extras Remote Monitoring (Wifi, Ethernet & GSM modules Available) Remote Control (Wifi, Ethernet & GSM modules Available) Double Axle Trailer   Global Recognized brands: Baudouin: Established in 1918, Baudouin has been a key player in marine and power sectors. With a rich history, they’ve become a symbol of trust and innovation. Their engines, known for adaptability and strength, have been chosen for numerous global projects. Focused on sustainable growth, Baudouin remains a top choice. StormerPower: Established in 1955, StromerPower is a leader in alternator production. Their dedication to precision and performance is evident in their products. Their unwavering quality standards have positioned StromerPower as an industry favorite. Smartgen: Established in 1998, Smartgen leads in control system creation. They offer controllers that are user-friendly and high-performing. Committed to continuous growth, Smartgen is recognized for its reliable and modern solutions.   Frequently Asked Questions: How does payment work? Here’s a breakdown of our payment process for generators:In-stock Items: These must be paid for in full before collection or delivery.Generators Below 200kVA: If components need to be imported, a 30% deposit is required. If components are in stock, a 30% deposit starts production. The balance is due 2 days before the estimated completion date.Generators Above 200kVA: Full payment is needed before production starts.NOTE: All generators must be paid in full before collection or delivery. No generator will be released without a valid payment confirmation and delivery note. Additionally, payments must be reflected in our account to secure pricing, and components, or to start production. A purchase order alone does not confirm an order. Ensure timely payments to prevent delays. Does the price include installation? No, the price doesn’t include installation. Installations are all different and require varying length of cable, time and distances to be travelled. In addition to this installations need to be done by a qualified electrician to issue a valid Certificate of Compliance (COC) for your insurance. We will gladly recommend a qualified local installer, please ask your Sales Consultant for more information. Installers are independent third parties and are used at your own discretion. Do you offer installation services? No, but we do have recommended installers throughout Southern Africa who will be able to assist you with your installation and sizing your generator. Installers are independent third parties and are used at your own discretion. Does the price include delivery? All prices exclude delivery. Due to the nature of the goods and their size they have to be delivered by a specialised truck and rigging crew. Hence delivery is charged extra based on the distance and complexity of the delivery. Does the price include a ATS (Automatic Changeover Switch)? Please review the generator specifications above to confirm if the generator has a built-in ATS, or whether you need to purchase one separately. Tell me about the Warranty? All generator warranties are limited warranties. Travel to the site is not included in the warranty. The goods need to be returned to us or a call-out will be charged. Please refer to our Terms and Conditions and the Warranty Card for further information on the warranty.  What is the Price Validity? Pricing is valid whilst stock lasts and is subject to change without prior notice. Pricing on the website is indicative and should always be confirmed by Mzansi Power in the form of a written quotation. Does the generator need to be installed on a plinth? Yes, the generator should be installed on a level plinth. Smaller generators (on wheels) can be installed on a paved area. How much space do I need to install the generator? You should install the generator with at least 1 meter clear around all sides. This is for optimal air-flow and servicing of the generator. Do I need to anchor the generator to the ground or have a rubber mat? No, the generator is mounted on anti-vibration mountings so it is not necessary to anchor it. The only reason to anchor the generator would be for theft purposes.  Can I put the generator in a room or can I build an enclosure around it? Air cooled generators should not be installed indoors or in an enclosure. This restricts air flow and it is a fire hazard.Water-cooled generators can be installed in a room provided adequate ventilation is provided (In and Out) and the exhaust is routed out of the room. Do I need surge protection? Yes, Surge protection should be installed on the mains incoming line before the ATS and generator. This is to protect the ATS, generator and your home or business. Failure to install adequate surge protection could result in the warranty being voided. Can I make the generator quieter? Silent generators are designed to minimize sound and optimize airflow through the generator canopy. Any restriction of the airflow in any way will lead to the generator overheating and it will cause damage to the generator.We do not recommend using any after-market silencing solutions, this will likely void your warranty and could be a fire hazard.Generators should be installed outside with at least one meter clear around them to allow for optimal working conditions. DO NOT install inside a room without appropriate ventilation. Will my generator rust? The standard canopies are made of powder-coated mild steel. While this provides some protection against the elements, rust may still form over time. In coastal areas, it’s advisable to regularly wash the generator to prevent salt accumulation.OPTIONAL upgrades to an aluminum canopy and a galvanized base are available for certain models. For models not eligible for this upgrade, we can refer you to a third-party service provider who offers specialized coatings. Both the aluminum and galvanized upgrades, as well as the specialized coatings, offer enhanced rust resistance, making them more suitable for coastal conditions. Please consult with your sales consultant for more info on these options.  PLEASE NOTE: This product must be installed by a qualified electrician and serviced by a certified mechanic. A Certificate of Compliance (COC) must be issued upon completion of the installation and a Service Report must be completed during each service to maintain the validity of the warranty. × PLEASE NOTE: All ratings are approximate and based on sea level conditions. Engines should be de-rated for altitude and continuous operation. As a guideline, performance should be de-rated by 1% for every 100m above sea level. For example, a 20kVA generator at sea level is equivalent to an 18kVA generator at 1000m above sea level (a 10% reduction). For sustained operation, it's advisable to operate a generator below 70% of its prime rated capacity to ensure longevity and optimal performance. Continuously running a generator between 70-85% of its capacity can risk overheating, with the exact threshold influenced by factors such as ventilation, humidity, and ambient temperature. The generator isn't designed to handle its full load immediately. Instead, loads should be introduced gradually, starting at 50% and increasing incrementally as the engine warms up. ×   30kVA Generator | 30 kVA Diesel Generator | 30 kVA Power Generator | 25kVA Generator | 25 kVA Diesel Generator | 25 kVA Power Generator | 30kVA Three Phase Generator | 25 kVA Three Phase Diesel Generator | Baudouin Generator
