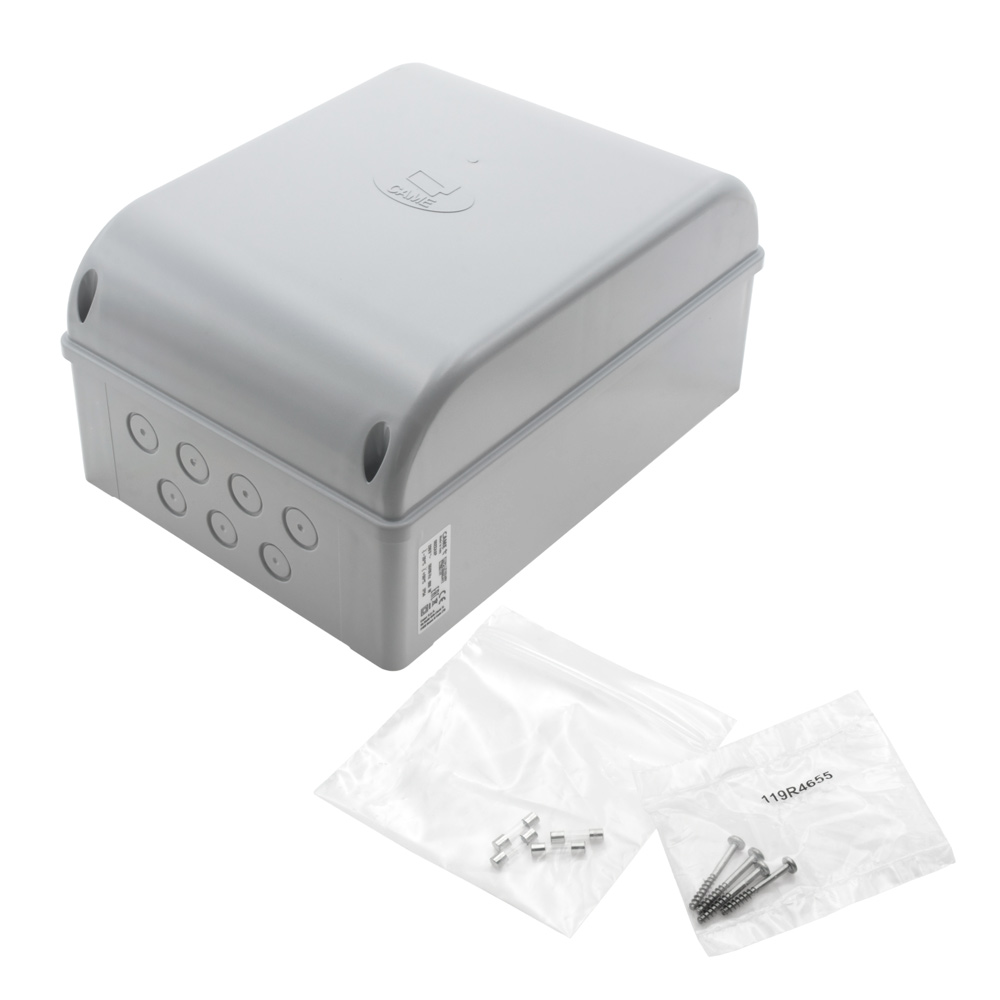

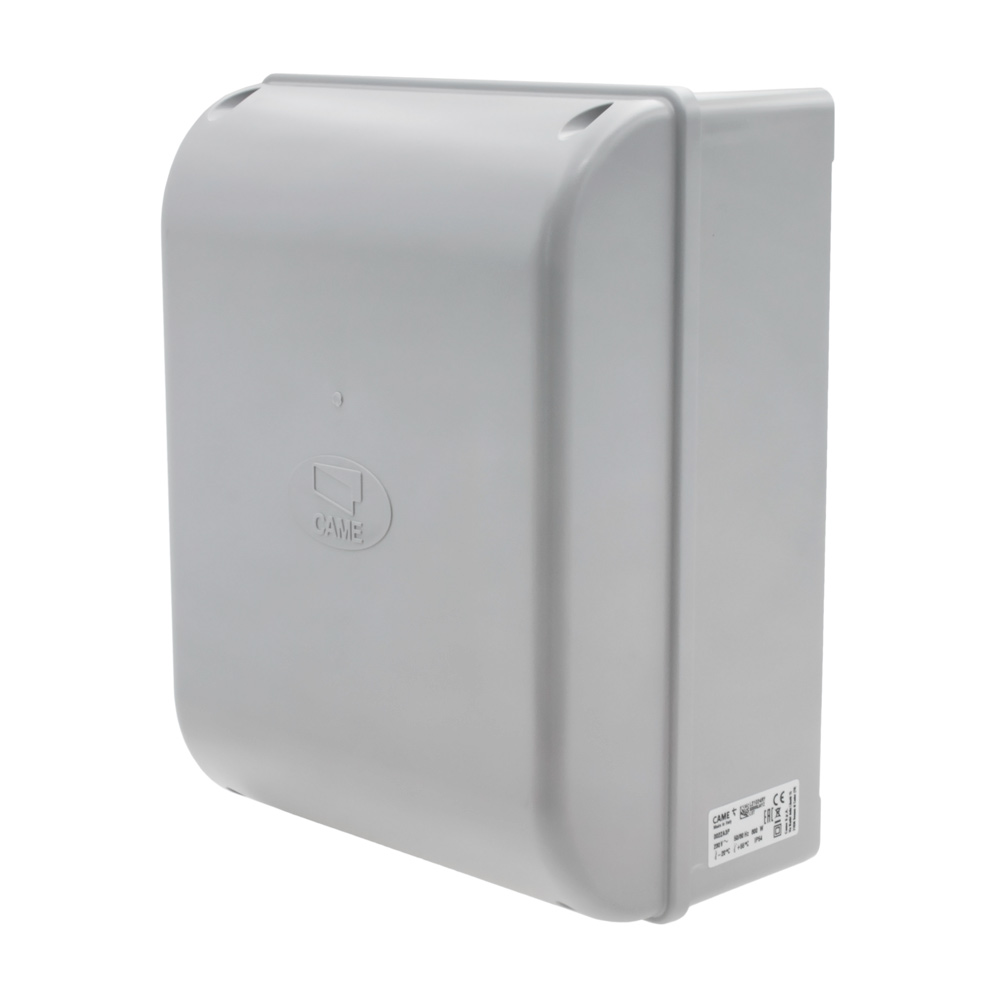

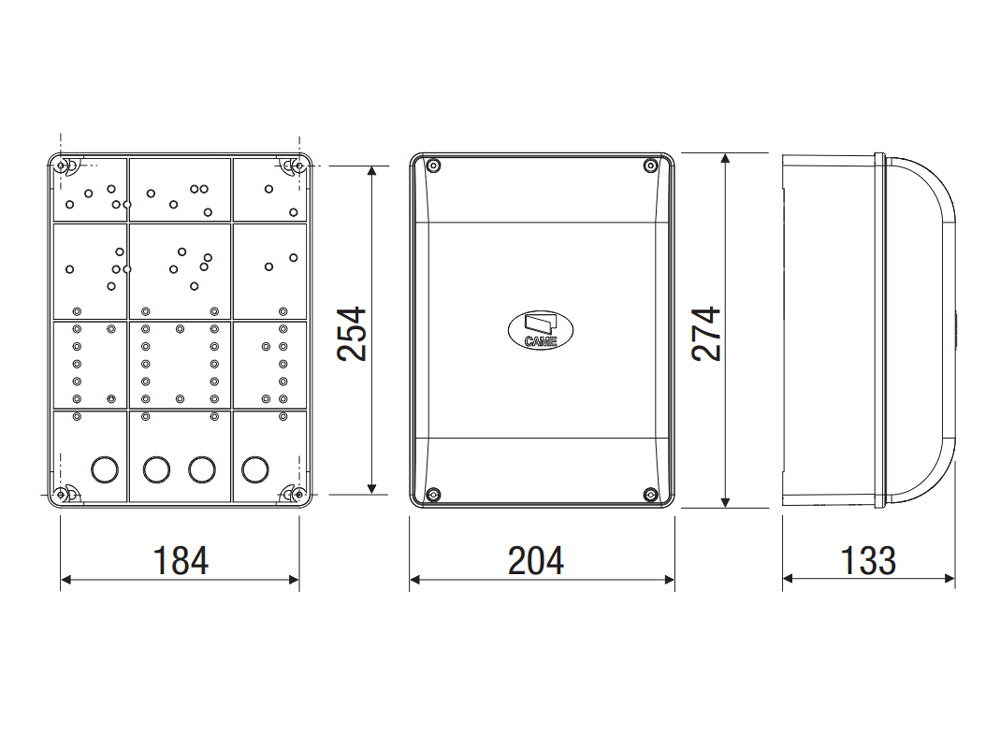

CAME ZA3P controller; housing; transformer

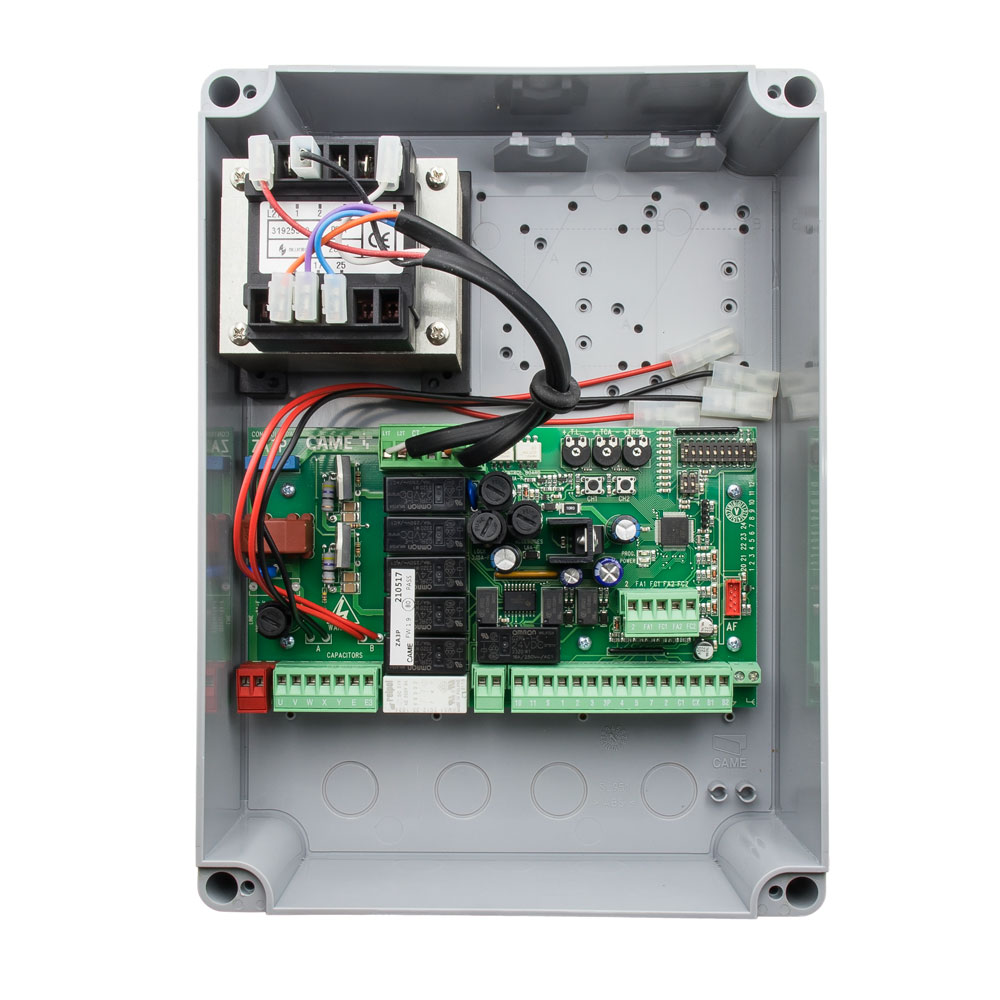

Description The Came ZA3P control unit is designed to control single-phase 230Vac/50-60Hz motors with a power of up to 300W from the KRONO, ATI, FERNI, FAST, and FROG series for single- or double-leaf gates. The control board is powered by 230Vac/50-60Hz voltage applied to terminals "L1-L2" and is protected by a 5A mains fuse. Terminals "10-11" supply 24Vac voltage to power accessories whose total power consumption must not exceed 20W. Security: Safety devices can be connected and set to: Reopening during closing phase (terminals 2-C1). Detection of an obstacle by the photocells during the gate closing phase causes the gate to reverse direction and fully open. Reclosure during opening phase (terminal 2-CX). Detection of an obstacle by the photocells during the gate opening phase causes the gate to reverse its movement and close completely. Stops (2-CX). Detection of an obstacle by the photocell causes the gate to stop completely. "STOP" button (2-1). Stops the gate and cancels the automatic closing cycle. To restart the gate, use the remote control or button "2-7" Features: Automatic Closing (TCA). The automatic closing time is automatically activated at the end of the opening cycle. However, the automatic closing time is subject to the action of any safety equipment connected to terminals "2-C1" and "2-Cx") and is canceled by a "STOP" impulse (terminals "2-1") or in the event of a power failure. Partial opening (2-3p). Opening of the gate leaf with the M2 motor (occurs when closing) Obstacle detection. When the gate is stopped and the safety devices connected to terminals "2-C1" and "2-CX" detect an obstacle, the motor will not start until the obstacle is removed. Electric lock. 12V / 15W "ES-ES" terminal, e.g. LOCK 81 or LOCK82 from CAME "GATE OPEN" signal. 24V/3W terminals "10-5", signals that the gate has not completed a full closing cycle. stop function gate function two-channel radio decoder input to two photocell lines 24V output for powering accessories closing and opening time adjustment Control: Step by step (open-stop-close) with the "2-7" button and remote control. Reversible (open-close) With the "2-7" button and remote control. MOTMAN (operator present), the gate can only be opened or closed when the button connected to terminals "2-7" is pressed. This function is activated when the TL (operating time) regulator is set to minimum.
