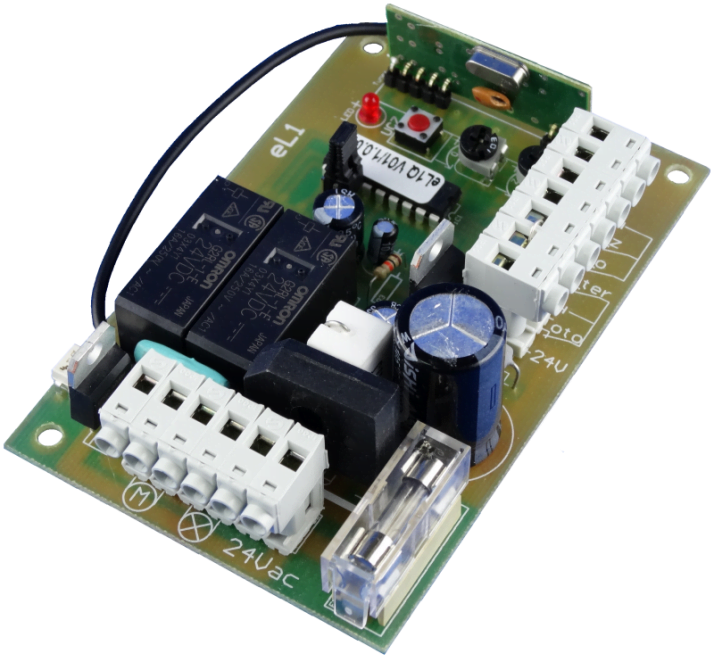

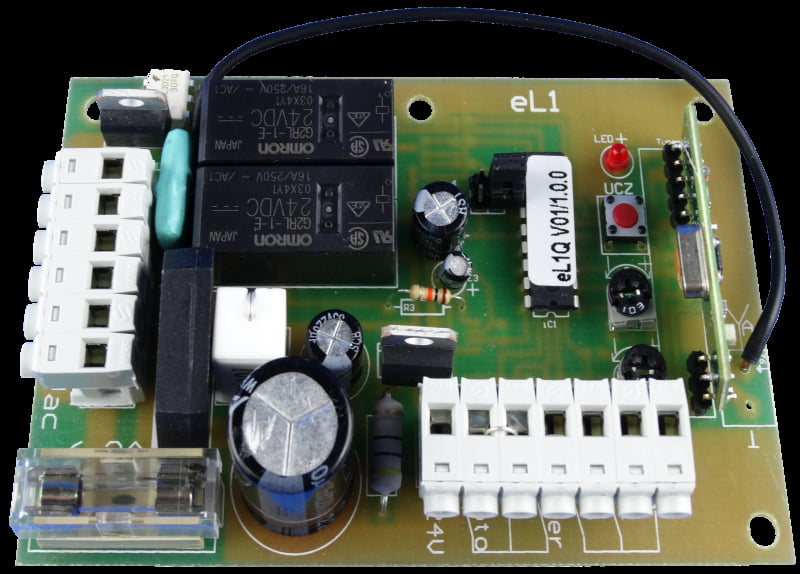

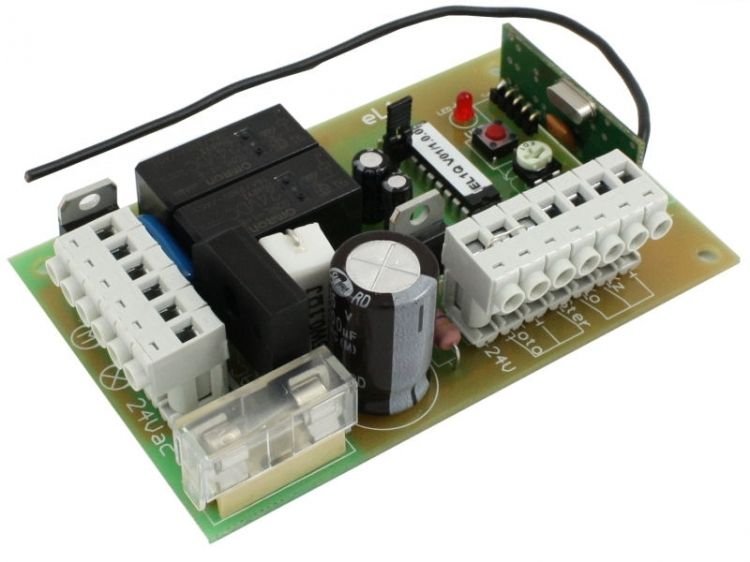

eL1Q; sliding gate and garage door controller; 24V/140W; Wiśniowski

Description eL1Q; sliding gate and garage door controller; 24V/140W; Wiśniowski Driver replaced by model: eLB7Hk or eLB7H The eL1 controller is designed for gate and garage operators using 24V DC motors with a power output of up to 140W. It is ideal for continuous operation. It can be used in residential parking lots, private properties, and businesses. It features numerous security features and a built-in 433.92MHz radio receiver. The eL1Q control unit operates in High Security KeeLoq® mode and is compatible with transmitters from Wiśniowski, ELBRAM, and eLdrim. The controller was used in first-generation OPTIMUM 600, 800, and 1100 automatic gate openers. The eL1QV01/2.0.0 control unit, with modified software, is used in repairs to Hormann ProMatic automatic gate openers. Basic features of eL1 Low price Built-in radio receiver Control via KeeLoq® rolling code radio transmitters Bell button control Infrared barrier Auto-close function Automatic closing of the gate earlier after passing the infrared barrier Adjusting the overload force Automatic overload release Light signaling or switching on with delayed switching off of the lighting Simple installation and programming procedure Technical data: eL1Q | eL1H Power supply: 24V ac/dc Operating temperature range: -20ºC / 70ºC Fuse type: 6.3 A dimensions (5×20) Engine power: max. 140W External dimensions (width x depth x height): 68mm x 105mm x 42.8mm without cable Case: no housing Libra: 110g | 110g Output parameters: Relay outputs (type, quantity, max. load): DC motor, single, 5.8A/24Vdc (maximum power 140W) Lamp relay output (type, quantity, max. load): monostable, single, 1A/24Vac (maximum power 25W) Radio parameters: Radio module: integrated, superheterodyne, ensuring high reliability, repeatability and resistance to radio interference Transmission standard: KeeLoq® Reception: up to 200m (when using eLdrim transmitters) Modulation type/frequency: OOK / 433.92MHz Antenna input impedance: 50 ohms Antenna: internal antenna Remote control memory: 20pcs | 20pcs. Functionality: Auto-close time: 5s – 10min Maximum controller operating time: 120s Maximum lamp lighting time: 25 min User interface: simple device installation, learning and configuration procedure, based on one LED and one button Transmitter configuration: ability to assign any button to a channel Possibility to erase entire memory:  Yes Possibility of deleting a single remote control:  NO Possibility of entering the remote control without having to access the receiver buttons:  NO Comments: eLB7 is a replacement for eL1Q, eL7Q, optimum controllers Files to download: eL1Q_Wisniowski.pdf
