12/24V DC control unit for sliding and swing gates with housing

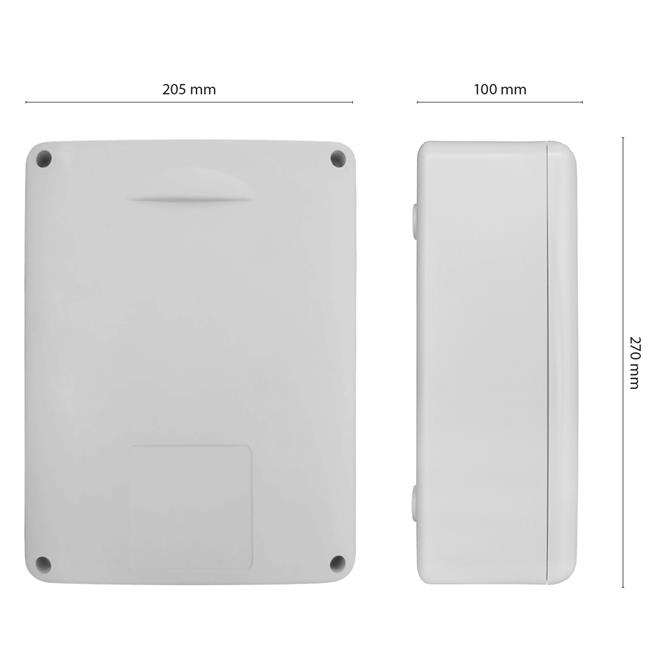

Description 12/24V DC control unit for sliding, swing and garage gates with release function Product description The 12/24V DC control unit is a modern panel for managing sliding, swing, and garage gate drives, such as the START-S10 12-24V Controller for sliding and swing garage gates. It was designed for installers and users who demand reliability, extensive configuration, and ease of use. Furthermore, it is equipped with a display for easy programming and system diagnostics. A housing with a toroidal transformer is included. Additionally, the device has a built-in buffer battery charging system, allowing the automation to operate even in the event of a power outage. This ensures a high level of safety and user comfort. This design is characteristic of models such as the START-S10 12-24V. This model is an ideal choice for anyone looking for a controller for sliding, swinging, and garage gates. Furthermore, its wide range of inputs and outputs allows for integration with photocells, electric locks, warning lights, and pedestrian gate mode. Product features Control unit for 1 or 2 12/24V DC motors – for swing, sliding and garage gates, which is a solution adapted to devices such as START-S10. Control unit with clear display, making configuration easier. Integrated buffer battery charging system, guaranteeing emergency operation as in START-S10 for sliding gates and others. Toroidal transformer 230V AC, 80W 100 VA, Dimensions (mm): 87 x 87 x 45 ABS housing – Protection class: IP:65, Material: ABS, Dimensions (mm): 270 x 205 x 100 Rich set of inputs: start–clock, photo A (closing), photo B (opening and closing), phototest, OPEN / CLOSE limit switches, electric lock / electromagnetic lock, pedestrian entry, STOP. Adjustable: engine speed, deceleration speed, forces/blockages. Individually activated outputs: lock, warning light, phototest, slowdowns, engines. Configurable "real-time" runtimes. Technical data Parameter Value Power supply 12-24 VAC/DC Max engine power 100 VA / 80 W Dry contact 5 A Power consumption 1.6 A Libra 230 g Dimensions 90 × 185 × 40 mm Files to download: Shortcut-List-Display-Start.pdf START-S10_160415_VX02_EN.pdf START-S10_160415_VXX14_IT.pdf START-S10_170915_VXX13_GB.pdf START -S10_280313_VXX02_EN.pdf START-S10_291116-TC_ XX 06_EN.pdf START-S10_291116_VXX06_EN.pdf START_SPEC_IT-GB-FR-DE – ES_201949.pdf
