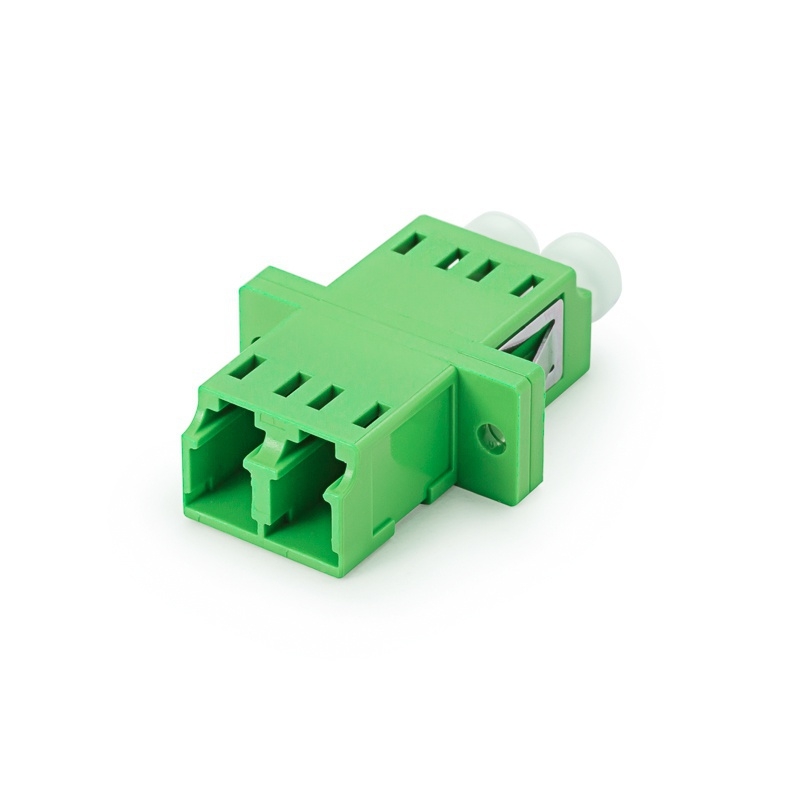

LC/APC Duplex SM Fiber Optic Adapter RS460104

The LC/APC Duplex SM Fiber Optic Adapter is a high-performance coupling solution designed to align and connect two LC/APC single-mode fiber connectors. Its duplex configuration allows simultaneous transmission and reception, making it ideal for high-density installations in FTTH networks, telecom, data centers, and CATV systems. The adapter features a durable zirconia ceramic sleeve for precise alignment, ensuring low insertion loss and high return loss, with exceptional reliability and long-term stability. Specification Value Connector Type LC/APC Duplex Fiber Mode Single Mode (SM) Insertion Loss ≤ 0.2 dB Return Loss ≥ 60 dB Durability >500 mating cycles Operating Temperature -40°C to 85°C Material Zirconia Ceramic Sleeve, Polycarbonate Housing Color Green
